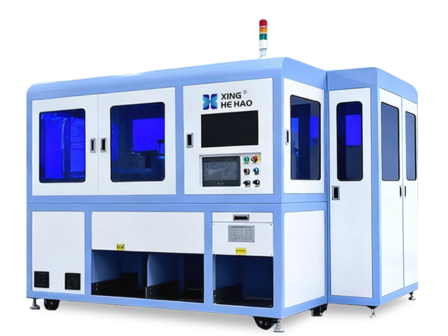

AUTOMATIC DUAL-DISK TESTING EQUIPMENT
The Automatic Dual-Disk Testing Equipment is designed
for high-precision inspection of rubber sealing products,
including O-rings, rectangular rings, bearing seal rings,
and flat gaskets. It detects defects such as burrs,
cracks, holes, material shortages, impurities, and
dimensional variations. With automated visual inspection
and 360° checking capabilities, the machine helps improve
product quality, inspection accuracy, and production
efficiency.
Technical Specifications
| Parameter |
XHH-288A |
XHH-288A-F |
| Model |
XHH-288A |
XHH-288A-F |
| Testing Items |
Dimensions, Burrs, A/B Surface Appearance, Thickness |
Dimensions, Burrs, A/B Surface Appearance, Inner/Outer Parting Lines |
| Number of Cameras |
4 |
15 |
| Machine Size (mm) |
2450 × 2450 × 1950 |
2450 × 2450 × 1950 |
| Power |
220V ±10%, 50–60Hz, ≤2.0 kW |
220V ±10%, 50–60Hz, ≤2.0 kW |
| Machine Weight |
1000 kg |
1000 kg |
| Air Pressure |
0.3–0.6 MPa (Compressed Dry Air) |
0.3–0.6 MPa (Compressed Dry Air) |
| Relative Humidity |
20%–80% |
20%–80% |
| Operating Temperature |
5–30°C |
5–30°C |
Inspection Capabilities
Applicable Products: O-rings, rectangular rings, bearing seal rings, flat gaskets, etc.
Inspection Items: Material shortages, excess material, damage, blocked holes, cracks, pits, burrs, mould contamination, gas entrapment, flow marks, impurities, inner and outer diameters, and cross-sectional diameter.
Product Size Range:Outer diameter 6–45 mm; cross-sectional diameter 1.1–5 mm.
Maximum Dimensional Accuracy:0.007 mm.
